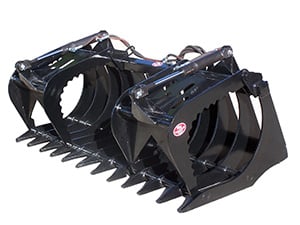

Root Grapple
- • Constructed of ½” plate steel with two 1 ½” solid shafts running through the bottom
- • 1/2” Gussets welded in for extra strength
- • Heavy duty grapples made from 1/2” plate steel
- • Two 2”x 8” hydraulic cylinders
- • Root Grapple Spacing is 6” – 7”
- • Reinforced heavy duty universal mounting brackets; gusseted top and bottom for extra strength
- • Includes flat faced couplers and hoses with built in orifices
- • Ideal for demolition, logging, brush, rocks, concrete, etc
Length/Width
62" (single)
62" (double)
74"
84"
Depth
39 1/4"
39 1/4"
39 1/4"
39 1/4"
Height
31 1/2"
31 1/2"
31 1/2"
31 1/2"
Height Open
35.5"
35.5"
35.5"
35.5"
Weight
700 #
790 #
880 #
955 #
**Weights and measurements are approximate
